A narrow cabinet doing a big job. This single 32L pull-out bin with integrated runners is made for 300mm cabinets, keeping everyday waste hidden but within easy reach.

Keep everyday kitchen waste neatly concealed with this slimline 32L pull-out kitchen bin. Designed to suit a standard 300mm external-width base cabinet, the complete system sits neatly inside your cabinetry and pulls forward for convenient everyday access.

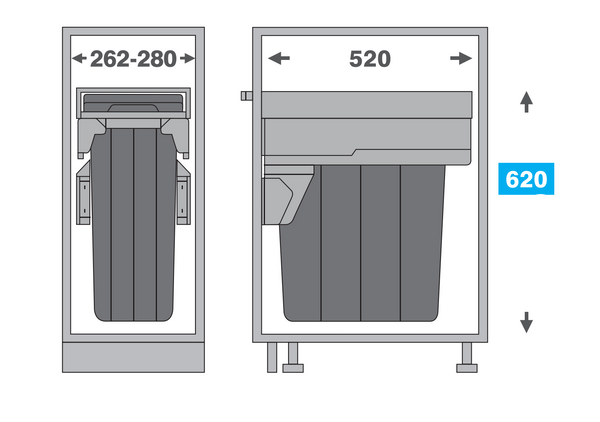

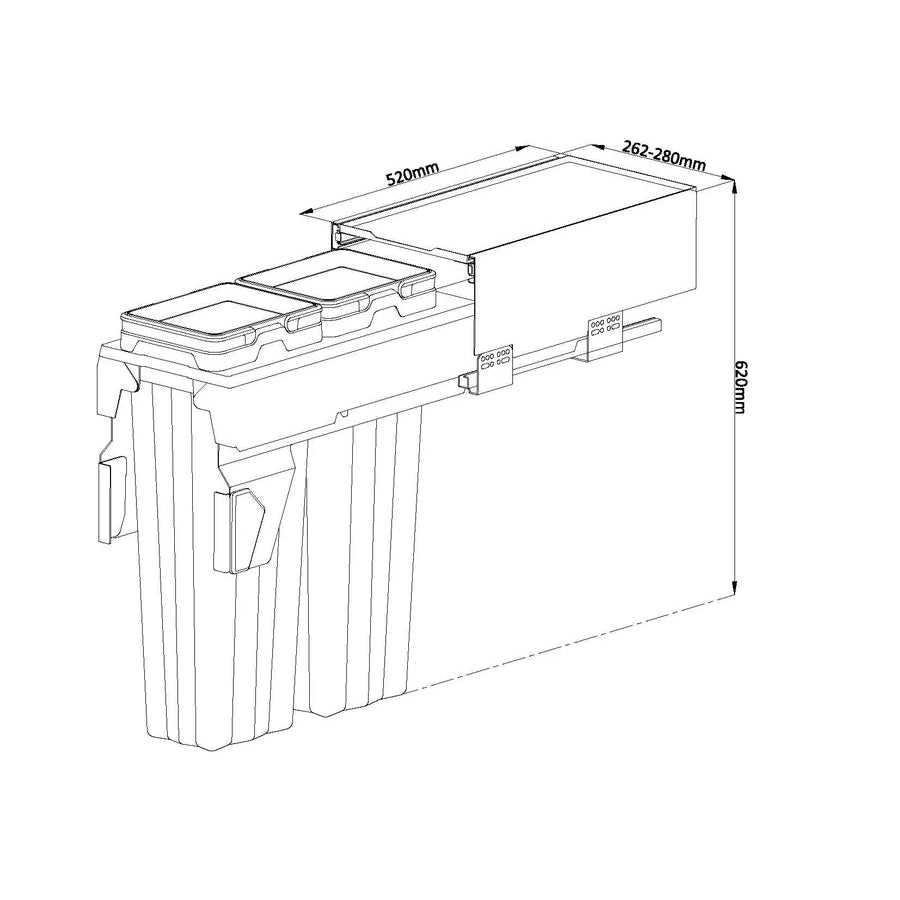

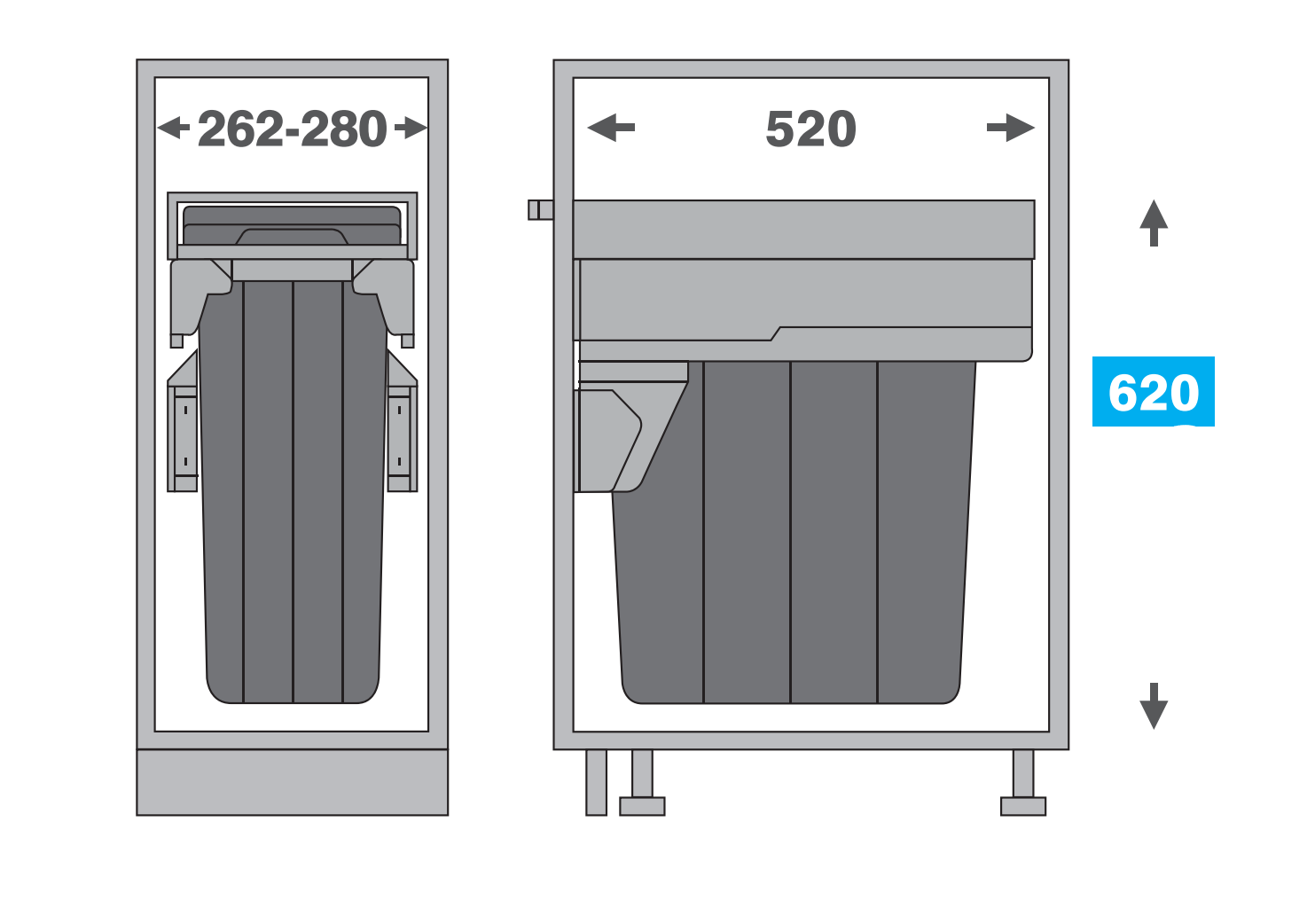

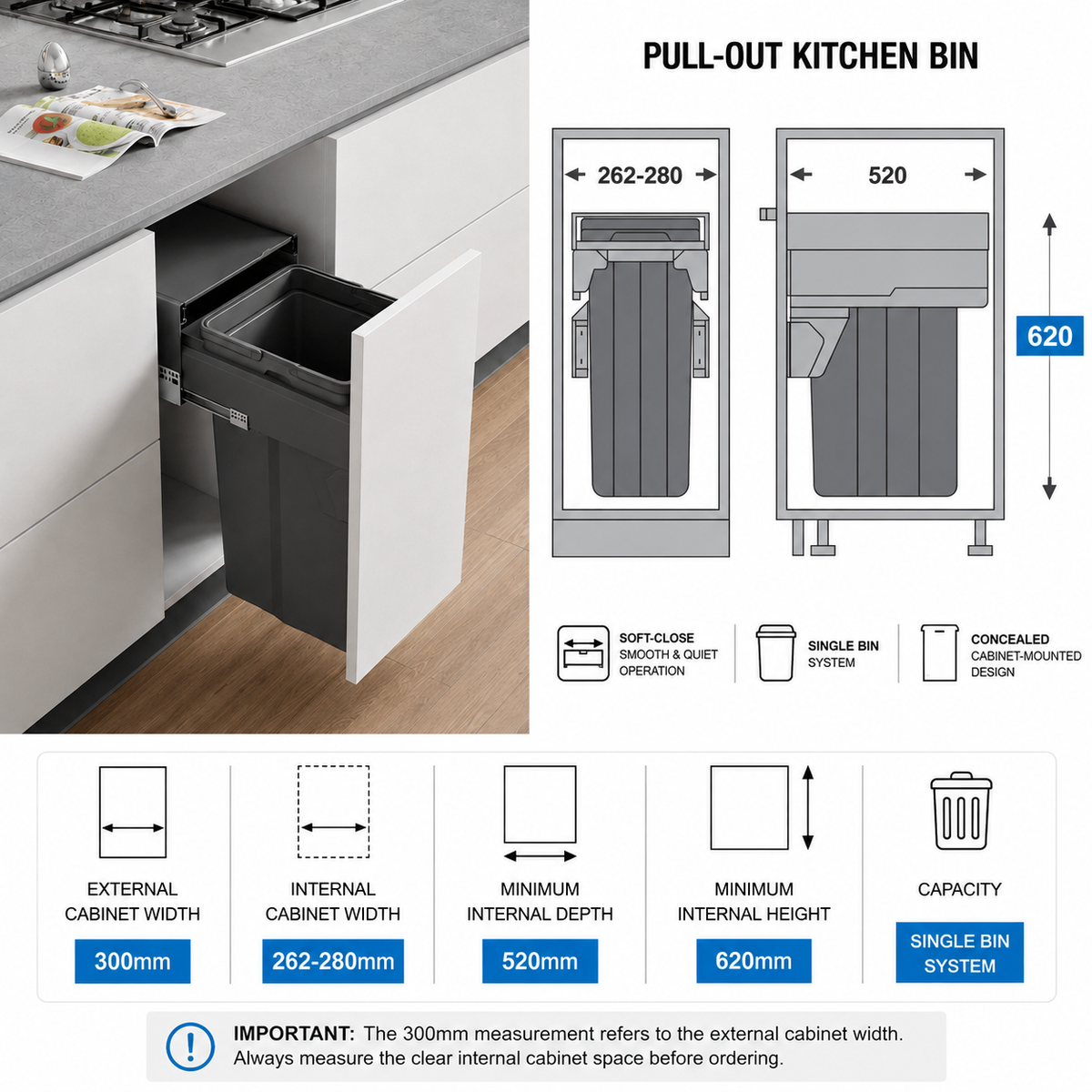

The cabinet must provide an internal width of 262–280mm, a minimum internal depth of 520mm and a minimum internal height of 620mm. Please measure the inside of your cabinet before ordering to confirm compatibility.

Supplied as a complete pull-out system with integrated runners, no separate runner system is required.

• External cabinet width: 300mm
• Required internal width: 262–280mm
• Minimum internal depth: 520mm
• Minimum internal height: 620mm
• Capacity: 1 × 32L
• Runners: Integrated runners (no separate runners needed)
• Colour: Dark grey
• Warranty: 1 year

• Complete Pull-Out System: Supplied with integrated runners, so no separate runner system is required.
• Concealed Waste Storage: Keeps everyday kitchen waste neatly hidden inside your cabinetry.
• Generous 32L Capacity: Practical everyday waste storage in a slimline cabinet design.
• Smooth Everyday Access: Pulls forward from the cabinet for convenient access when needed.
• Designed for 300mm Cabinets: Suitable for a 300mm external-width base cabinet when the required internal clearances are available.
• Modern Dark Grey Finish: A clean and understated finish designed to suit modern kitchen cabinetry.
• 1-Year Warranty: Backed by a 1-year warranty.

• Single 32L kitchen waste bin
• Complete pull-out system with integrated runners
• No separate runners required
• Smooth and convenient pull-out access
• Space-saving concealed design
• Designed for a 300mm external-width base cabinet
• Dark grey finish
• Product code: MAX300-M620-1

Suitable for a 300mm external-width base cabinet, this compact pull-out system requires sufficient internal space for the bin and integrated runner mechanism.

• External cabinet width: 300mm
• Required internal width: 262–280mm
• Minimum internal depth: 520mm
• Minimum internal height: 620mm

Before ordering, measure the actual clear internal space of your cabinet. The external cabinet width alone is not enough to confirm a suitable fit, as cabinet construction and internal clearances can vary.

Make sure the required width, depth and height are available without interference from hinges, plumbing, pipes, shelves, electrical connections or other internal components.

This system includes integrated runners, so no separate runner system is required. Allow sufficient clearance for the complete pull-out mechanism to operate smoothly.

Important: Your cabinet should provide 262–280mm internal width, at least 520mm internal depth and at least 620mm internal height before ordering.

Bin Capacity: 32L

Suitable Cabinet Size:
300mm external cabinet width

Required Internal Cabinet Space:

• Internal Width: 262–280mm
• Minimum Internal Depth: 520mm
• Minimum Internal Height: 620mm

Colour: Dark grey

Please Measure Before Ordering:
The 300mm measurement refers to the external width of the cabinet. Your cabinet must also provide an internal width of 262–280mm, minimum internal depth of 520mm and minimum internal height of 620mm for installation.

Always measure the clear internal cabinet space and check for hinges, plumbing, shelves or other obstructions before ordering.

• 1 × 32L bin
• Integrated pull-out runner system

• Wipe the bin and exposed runner system with a soft, damp cloth.
• Use mild dishwashing liquid when additional cleaning is required.
• Dry all components thoroughly before returning the bin to the cabinet.
• Keep the runner tracks clear of dirt and debris.
• Avoid abrasive pads, harsh chemicals, bleach and solvent-based cleaners.

This product is supplied as a complete pull-out bin system with integrated runners. No separate runner system is required.

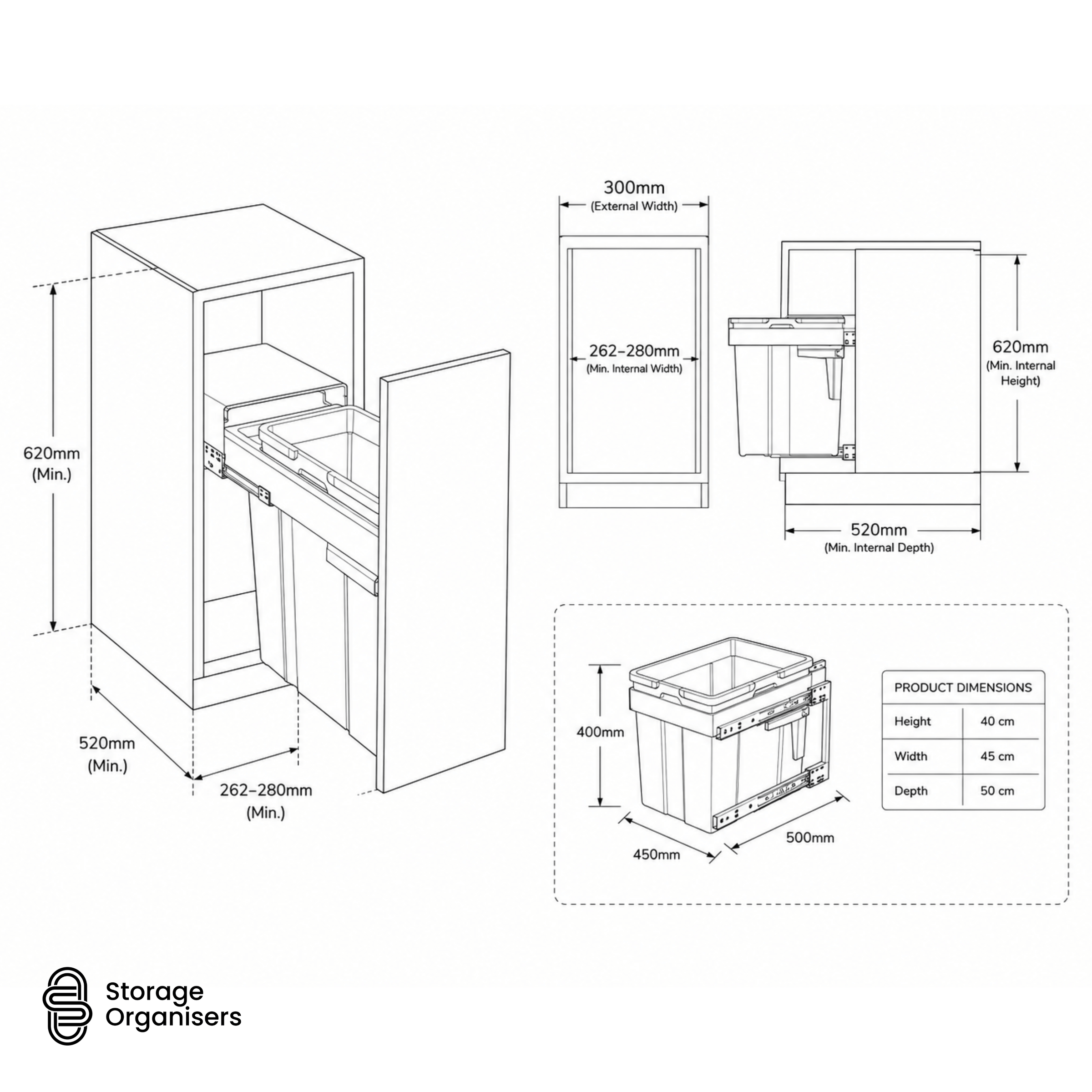

Cabinet Requirements

• External cabinet width: 300mm
• Internal cabinet width: 262–280mm
• Minimum internal cabinet depth: 520mm
• Minimum internal cabinet height: 620mm

Before You Begin

• Measure the clear internal width, depth and height of your cabinet.
• Confirm the cabinet has a 300mm external width.
• Check that the internal width measures between 262mm and 280mm.
• Confirm there is at least 520mm of clear internal depth.
• Confirm there is at least 620mm of clear internal height.
• Check for hinges, plumbing, pipes, electrical connections, shelves or other obstructions.

Important: Cabinet dimensions can vary even when the external cabinet width is 300mm. Always measure the actual clear internal space before ordering.

• How do I know it will fit my cabinet?
  Measure the inside of your cabinet. You need a clear internal width of 262–280mm, at least 520mm internal depth and at least 620mm internal height. The 300mm figure is the outside width of the cabinet, so check for hinges, pipes and shelves too.
• How much time should I allow for installation?
  Allow time for careful measuring and fitting. Customers have told us installation is not a quick job, and one had a cabinet maker fit theirs.
• Can I return it if it does not fit?
  Bins & Hampers can be returned for change of mind within 7 days of delivery, with a 25% restocking fee, so please measure your cabinet carefully before ordering. If you would like us to check your measurements, email us and we will reply within 1 business day.
• Is there a warranty?
  Yes. It is backed by a 1-year warranty.
