Keep everyday kitchen waste neatly concealed and organised with this 74L dual pull-out kitchen bin. Designed for a nominal 500mm-wide base cabinet, it includes two separate 37L compartments and comes complete with its own integrated runner system. No separate runners are required.

The dual-compartment design makes it easier to separate general waste and recycling while keeping both bins hidden inside your cabinetry. Its generous capacity, smooth pull-out access and modern dark grey finish make it a practical choice for new kitchens, renovations and cabinetry upgrades.

• Dual Waste Compartments: Two separate 37L bins make sorting general waste and recycling easier.
• Complete Pull-Out System: Supplied with integrated runners, so no separate runner system is required.
• Generous 74L Capacity: Provides ample everyday waste storage while remaining concealed inside your cabinetry.
• Smooth Everyday Access: The integrated runner system allows both bins to slide forward conveniently.
• Concealed Cabinet Storage: Keeps unsightly bins hidden and frees up valuable kitchen floor space.
• Modern Dark Grey Finish: Creates a clean and understated appearance inside your kitchen cabinetry.

• Two separate 37L kitchen waste bins
• 74L combined storage capacity
• Complete pull-out system with integrated runners
• No separate runners required
• Suitable for separating general waste and recycling
• Smooth and convenient pull-out access
• Space-saving concealed design
• Suitable for domestic kitchen cabinetry
• Dark grey finish


• • Capacity & System Dimensions

    • Total Capacity: 74L
    • Individual Bin Capacity: 2 × 37L
    • Suitable Cabinet Width: 500mm nominal external cabinet width

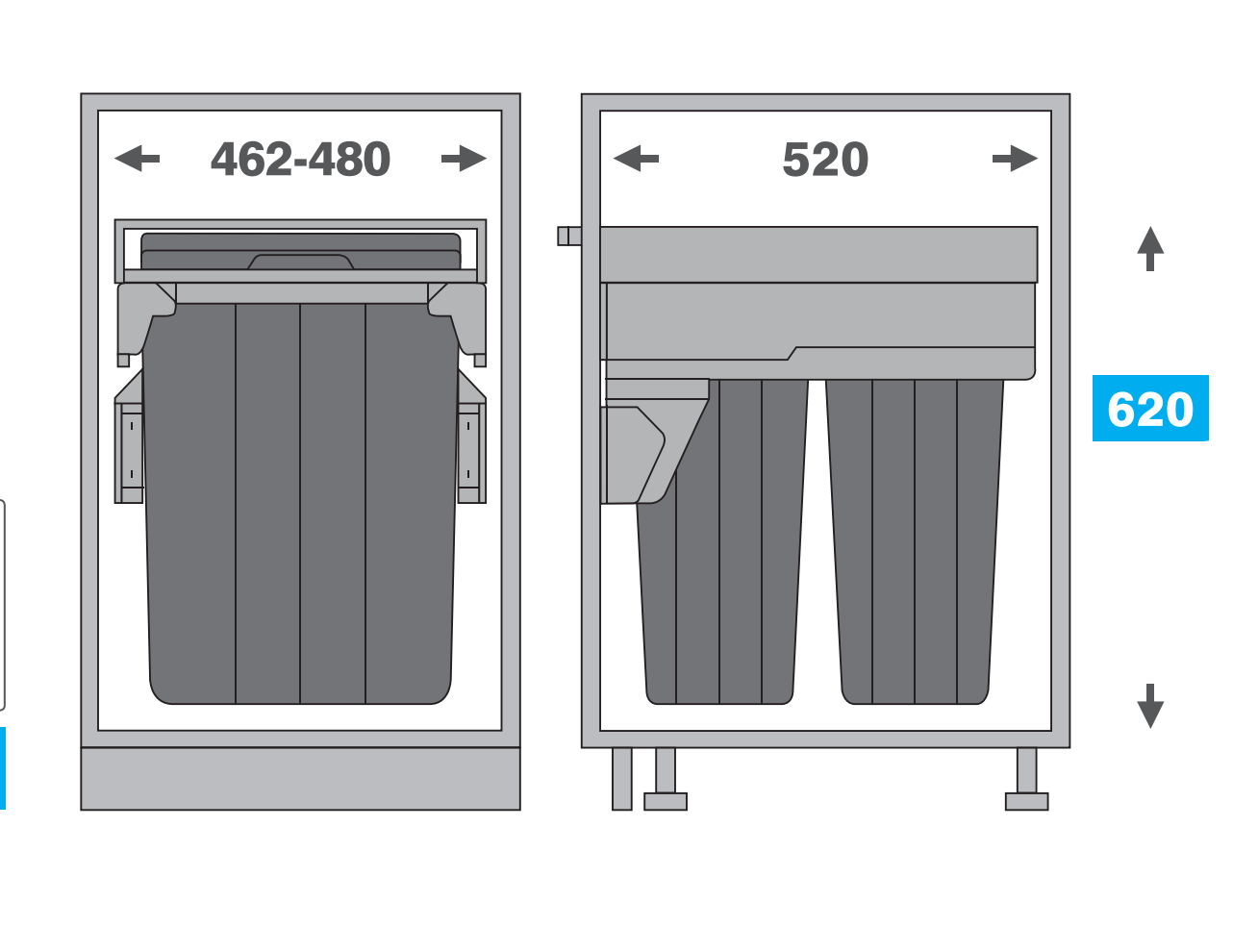

    • System Width: Adjustable from 462mm to 480mm
    • System Depth: 520mm
    • System Height: 620mm
    • Colour: Dark grey

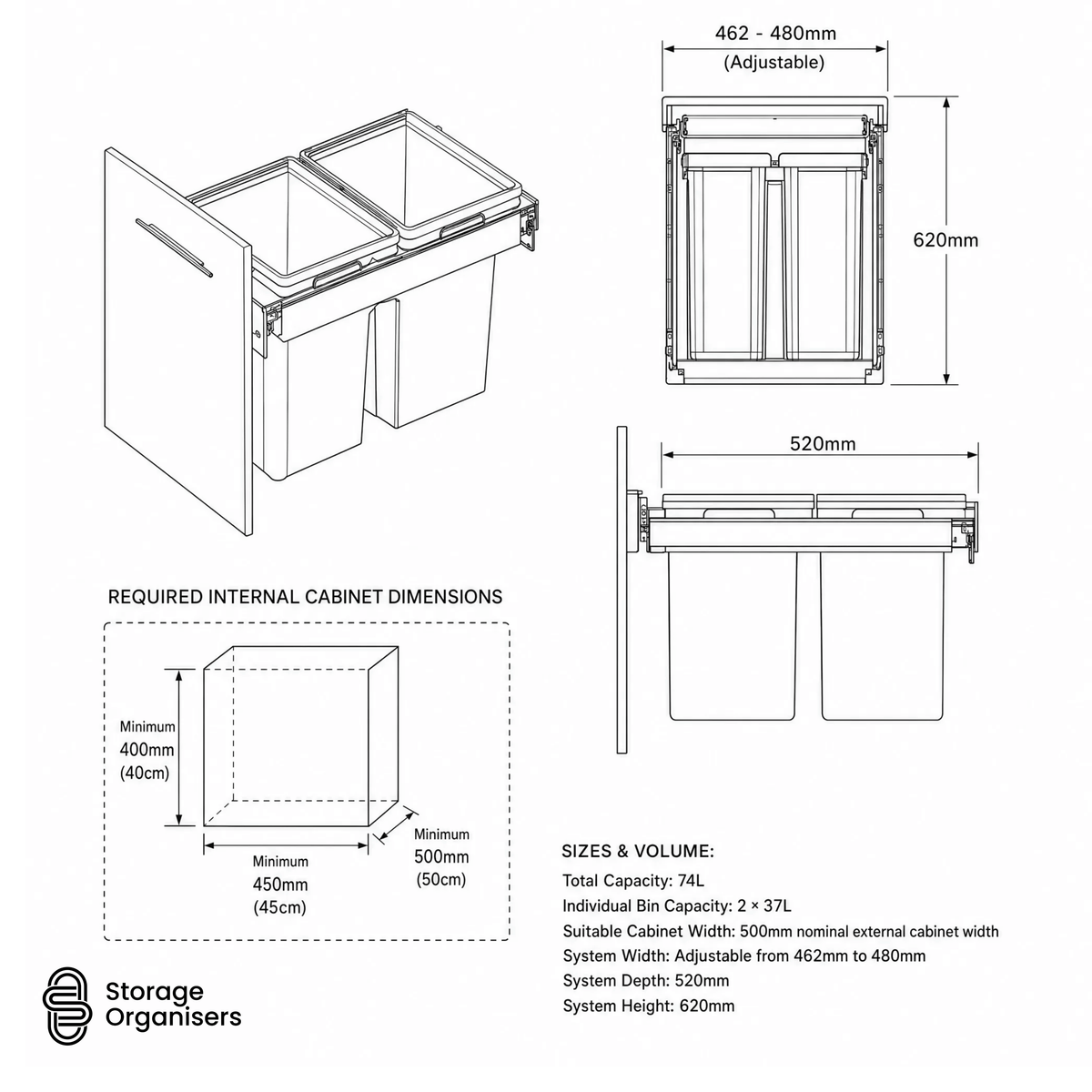

    Required Internal Cabinet Dimensions

    • Minimum Internal Cabinet Width: 45 cm
    • Minimum Internal Cabinet Height: 40 cm
    • Minimum Internal Cabinet Depth: 50 cm

    Please Measure Your Cabinet Before Ordering:
    Please measure the internal width, internal depth and internal height of your cabinet before ordering to ensure there is sufficient space for installation.

    Important: The 74L capacity refers to the combined usable capacity of the two 37L bins. The pull-out system occupies part of the cabinet space, so the full internal cabinet volume is not available for bin storage.

    Note: The cabinet measurements above refer to the minimum internal cabinet space required for installation, while the system width, depth and height refer to the pull-out system itself.

• 2 × 37L bins
• Integrated pull-out runner system

• Wipe the bins and exposed runner system with a soft, damp cloth.
• Use mild dishwashing liquid when additional cleaning is required.
• Dry all components thoroughly before returning the bins to the cabinet.
• Keep the runner tracks clear of dirt and debris.
• Avoid abrasive pads, harsh chemicals, bleach and solvent-based cleaners.

This product is supplied as a complete pull-out kitchen bin system with integrated runners. No separate runner selection or runner purchase is required.

Before You Begin

• Measure your cabinet: The product is designed for a nominal 500mm-wide base cabinet. Check the cabinet's internal width, height and depth before ordering and installation. Allow sufficient space for the complete pull-out system to operate. Check for hinges, plumbing, pipes, electrical connections, shelves or other obstructions that could interfere with the bins or pull-out mechanism.
• Prepare the cabinet: Remove items from the cabinet. Ensure the cabinet interior is clean and clear. Make sure the cabinet and installation surface are stable and suitable for the pull-out system.
• Check the product dimensions: System width: Adjustable from 462mm to 480mm. System depth: 520mm. System height: 620mm. Total bin capacity: 74L. Bin configuration: 2 × 37L bins.

Step-by-Step Installation

1. Step 1: Position the Pull-Out System: Place the complete pull-out bin system inside the cabinet and align it with the cabinet opening. The integrated runners are part of the pull-out system, so there is no separate runner installation or runner selection.
2. Step 2: Align the System: Check that the pull-out system is positioned squarely within the cabinet and that there is sufficient clearance on both sides for the runners and frame to operate.
3. Step 3: Secure the System: Secure the pull-out system to the cabinet using the mounting method specified in the supplied installation instructions. Do not add or assume screw locations, fixing points or hardware specifications unless they are confirmed in the supplier's installation instructions.
4. Step 4: Check the Bins: Confirm that both 37L bins are correctly positioned within the pull-out system and can be removed and replaced without obstruction.
5. Step 5: Test the Pull-Out Mechanism: Pull the system fully forward and push it back into the cabinet several times. Check that:
   • The system moves smoothly.
   • Both bins remain correctly positioned.
   • The bins and frame clear the cabinet sides.
   • The cabinet door and hinges do not interfere with operation.
   • The system can be fully opened and closed without obstruction.
