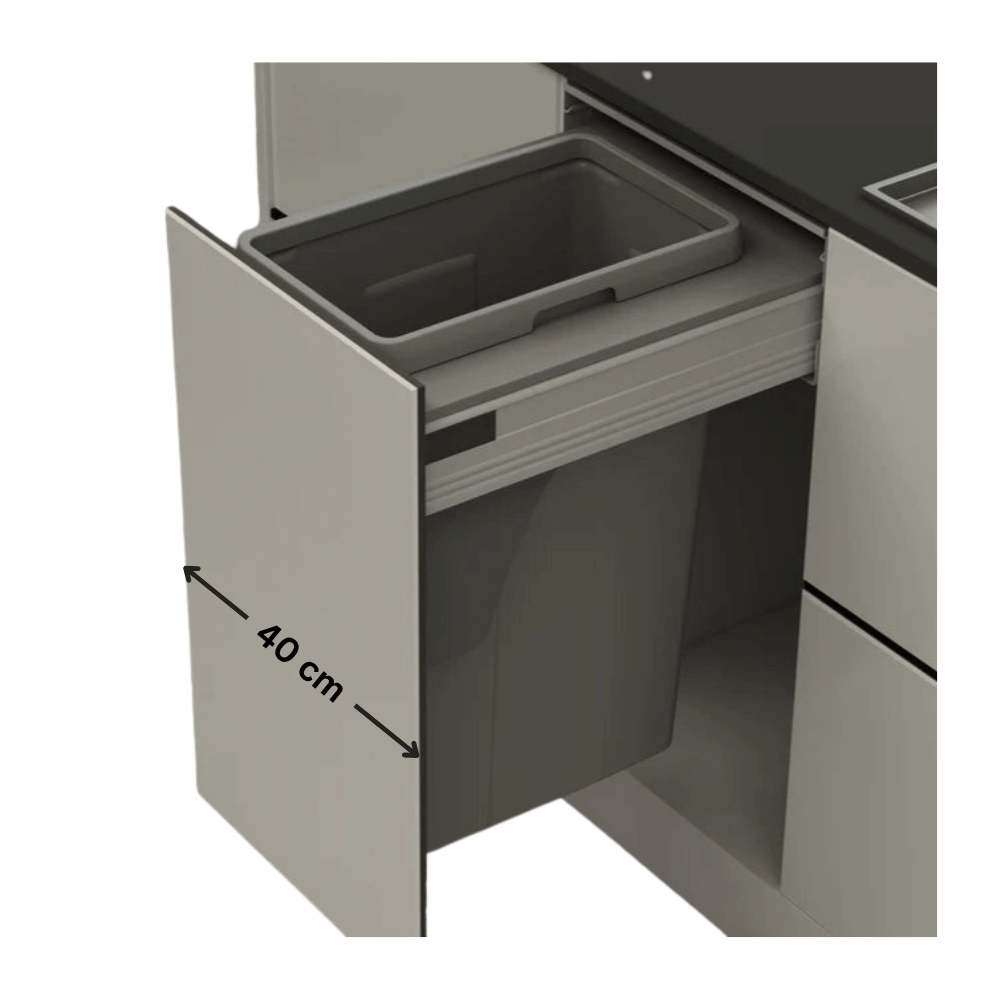

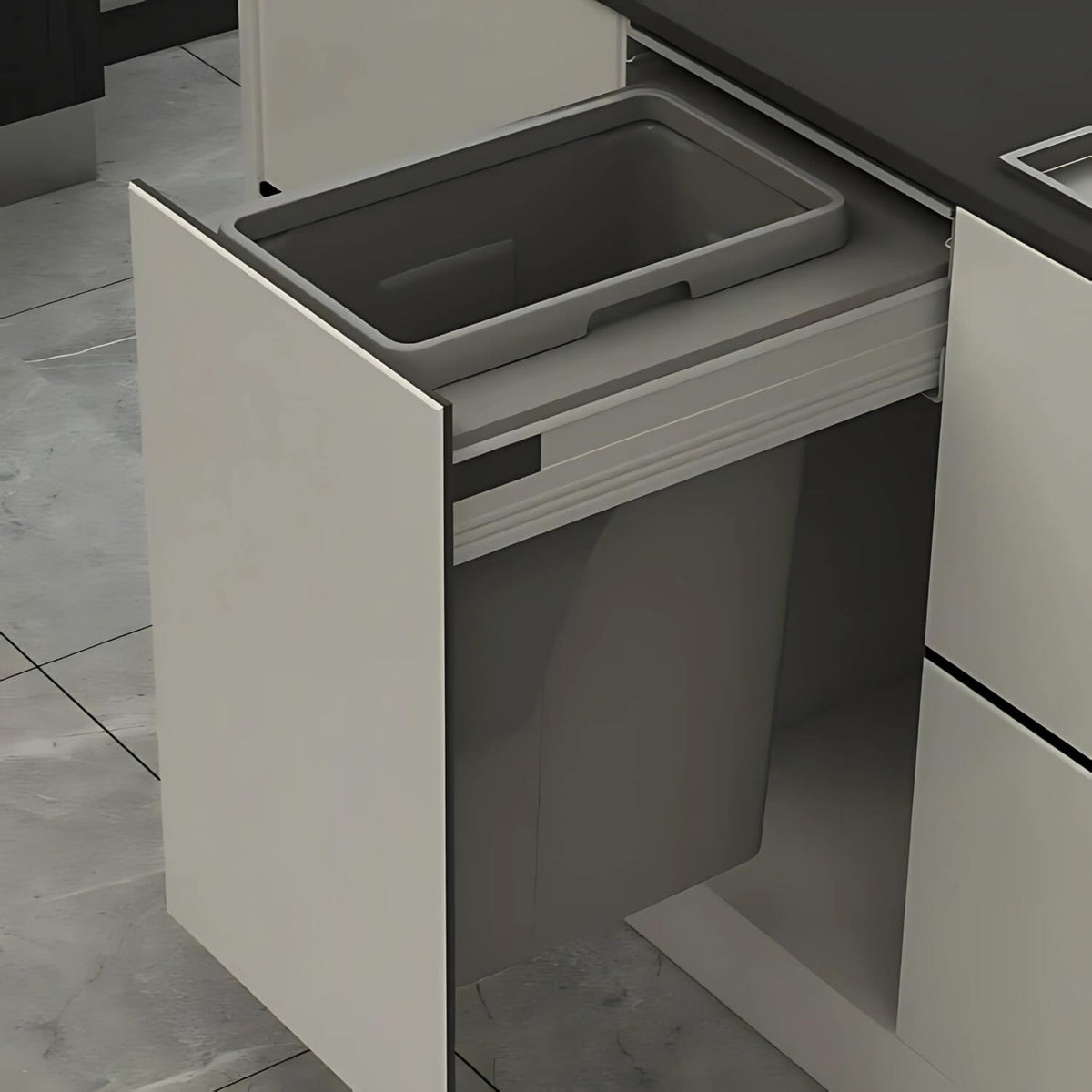

Keep everyday kitchen waste neatly concealed with this 35L pull-out kitchen bin system designed for a 400mm external-width cabinet. Choose the complete set with 500mm soft-close runners included, or select the runner-excluded option if you already have a compatible runner system for your installation.

Choose Your Runner Option: Select Includes 500mm Soft-Close Runners (Complete Set) for the full installation kit, or Excludes Runners (Bin & Frame Included) if you are supplying a compatible runner system separately.

The soft-close pull-out system provides smooth, controlled opening and closing for convenient everyday use, while the concealed cabinet-mounted design keeps your kitchen floor clear and your rubbish neatly hidden inside the cabinetry.

Choose the runner-included complete set or the runner-excluded bin and frame option to suit your installation.

Before ordering, your cabinet must provide a clear internal width of 362–368mm, at least 506mm internal depth and at least 570mm internal height.

• Complete Pull-Out System: Includes the 35L removable bin, pull-out support frame and soft-close runner system.
• Generous 35L Capacity: Practical everyday waste storage within a compact cabinet footprint.
• Soft-Close Operation: Smooth, controlled closing makes the system comfortable and convenient to use every day.
• Designed for 400mm Cabinets: Suitable for a 400mm external-width cabinet when the required internal clearance is available.
• Removable Bin: Lift the 35L container out for convenient emptying and cleaning.
• Concealed Waste Storage: Keeps everyday rubbish neatly hidden inside your cabinetry.
• Space-Saving Design: Keeps valuable kitchen floor space clear by integrating your waste bin directly into the cabinetry.

• Runner Options: With or without 500mm soft-close runners
• Capacity: 35L
• Bin Configuration: 1 × 35L removable bin
• External Cabinet Width: 400mm
• Required Internal Width: 362–368mm
• Required Internal Depth: Minimum 506mm
• Required Internal Height: Minimum 570mm
• Soft-Close: Yes
• Runner System: Optional 500mm soft-close runners – select your preferred variant
• Pull-out cabinet-mounted design
• Removable bin for easier emptying and cleaning
• Concealed integrated waste storage
• Suitable for kitchen, pantry or utility cabinetry

Capacity

• Total Capacity: 35L
• Configuration: 1 × 35L removable bin

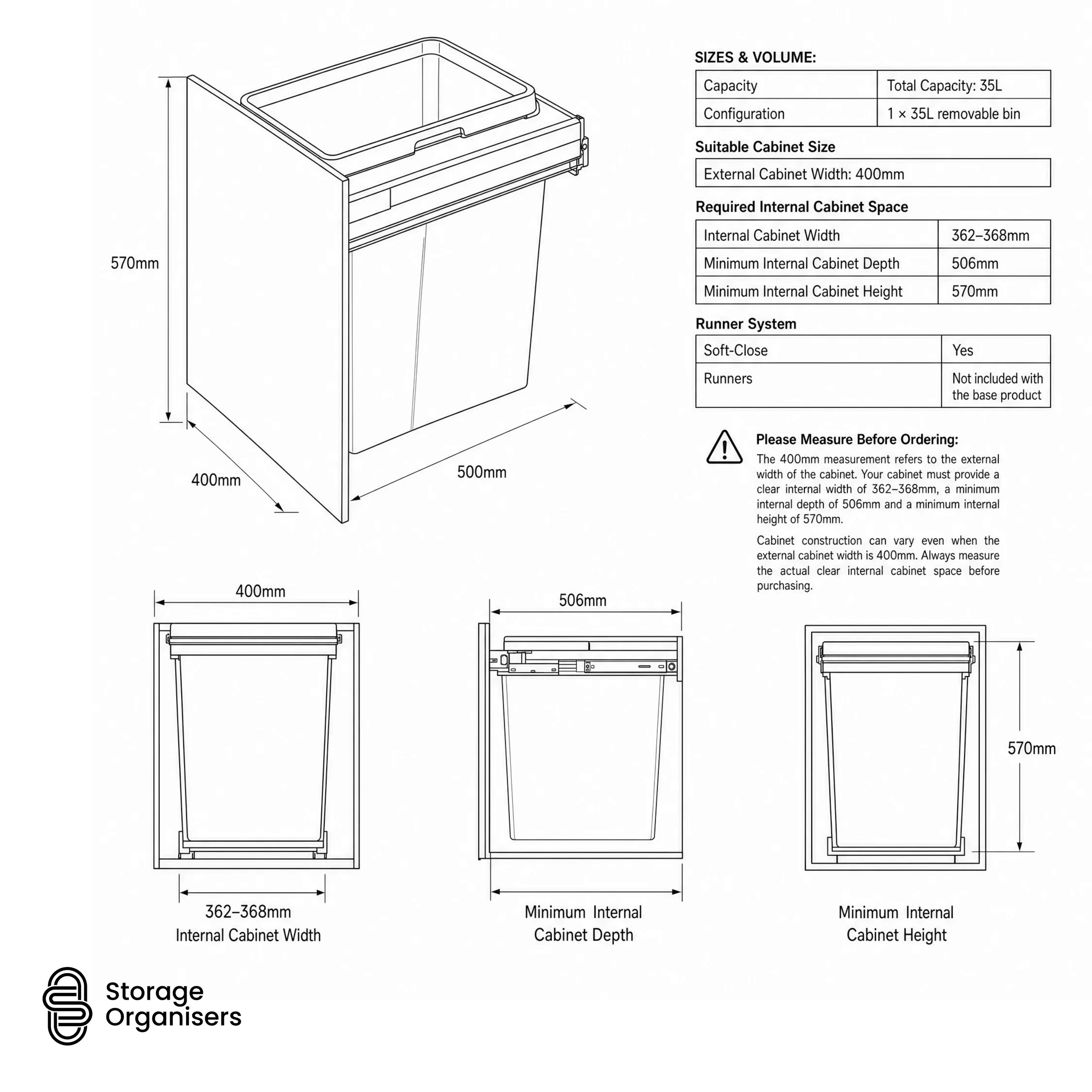

Suitable Cabinet Size

• External Cabinet Width: 400mm

Required Internal Cabinet Space

• Internal Cabinet Width: 362–368mm
• Minimum Internal Cabinet Depth: 506mm
• Minimum Internal Cabinet Height: 570mm

Pull-Out System

• Operation: Soft-close
• Runners: Optional – included only with the complete-set variant

Please Measure Before Ordering:
The 400mm measurement refers to the external width of the cabinet. Your cabinet must provide a clear internal width of 362–368mm, a minimum internal depth of 506mm and a minimum internal height of 570mm.

Cabinet construction can vary even when the external cabinet width is 400mm. Always measure the actual clear internal cabinet space before purchasing.

• 1 × 35L removable waste bin
• 1 × pull-out support frame
• 1 × 500mm soft-close runner system (runner-included variant only) (runner-included variant only)
• 1 × installation guide

Runner-Included Variant: Supplies the bin, frame and 500mm soft-close runner system together as a complete set.

• Remove the bin and wash with warm, mild soapy water.
• Dry the bin thoroughly before returning it to the pull-out frame.
• Wipe the support frame with a soft, damp cloth when required.
• Keep runner tracks and moving components free from crumbs, dust and debris.
• Avoid abrasive pads, harsh chemicals, bleach and solvent-based cleaners.

This complete pull-out kitchen bin system is designed for installation inside a 400mm external-width cabinet.

Cabinet Requirements

• External Cabinet Width: 400mm
• Internal Cabinet Width: 362–368mm
• Minimum Internal Depth: 506mm
• Minimum Internal Height: 570mm
• Runner System: Soft-close

Before Installation

1. Measure the clear internal width, depth and height of your cabinet.
2. Confirm the cabinet has a 400mm external width.
3. Confirm the clear internal width is between 362mm and 368mm.
4. Confirm there is at least 506mm of clear internal depth.
5. Confirm there is at least 570mm of clear internal height.
6. Check for hinges, plumbing, pipes, shelves, electrical connections and other obstructions.

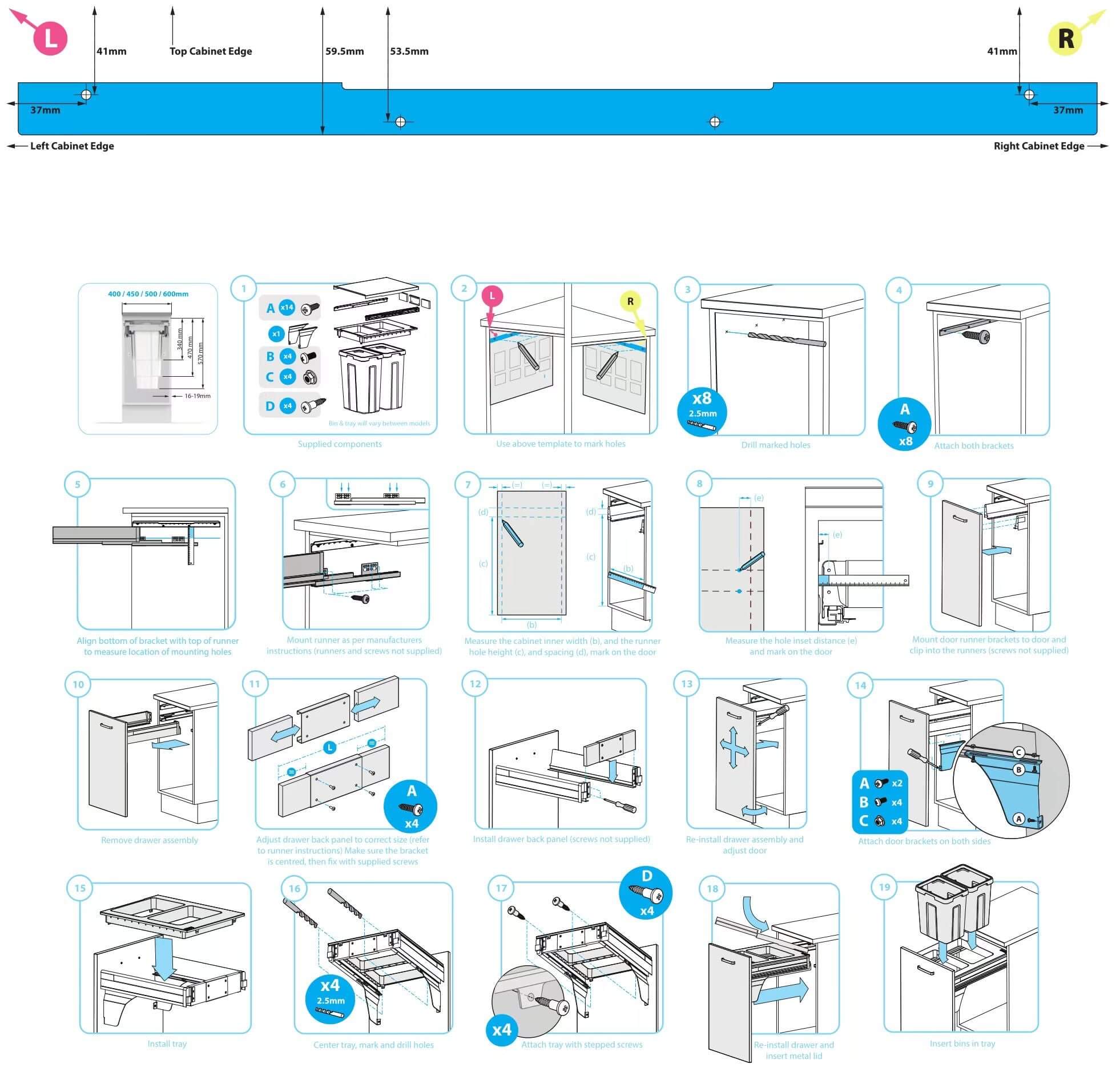

Installation

1. If you selected the runner-included variant, install the supplied 500mm soft-close runner system according to the installation instructions. If you selected the runner-excluded variant, a compatible runner system must be supplied separately before fitting the pull-out frame.
2. Fit the pull-out support frame securely onto the runner system.
3. Fit and align the cabinet front according to the supplied installation instructions.
4. Place the 35L removable bin securely into the pull-out frame.
5. Fully extend and close the system several times to confirm smooth movement.
6. Confirm the soft-close mechanism operates correctly and the bin does not interfere with the cabinet during operation.

Important: Do not rely on the 400mm external cabinet measurement alone. Your cabinet must also provide 362–368mm internal width, 506mm minimum depth and 570mm minimum height.
