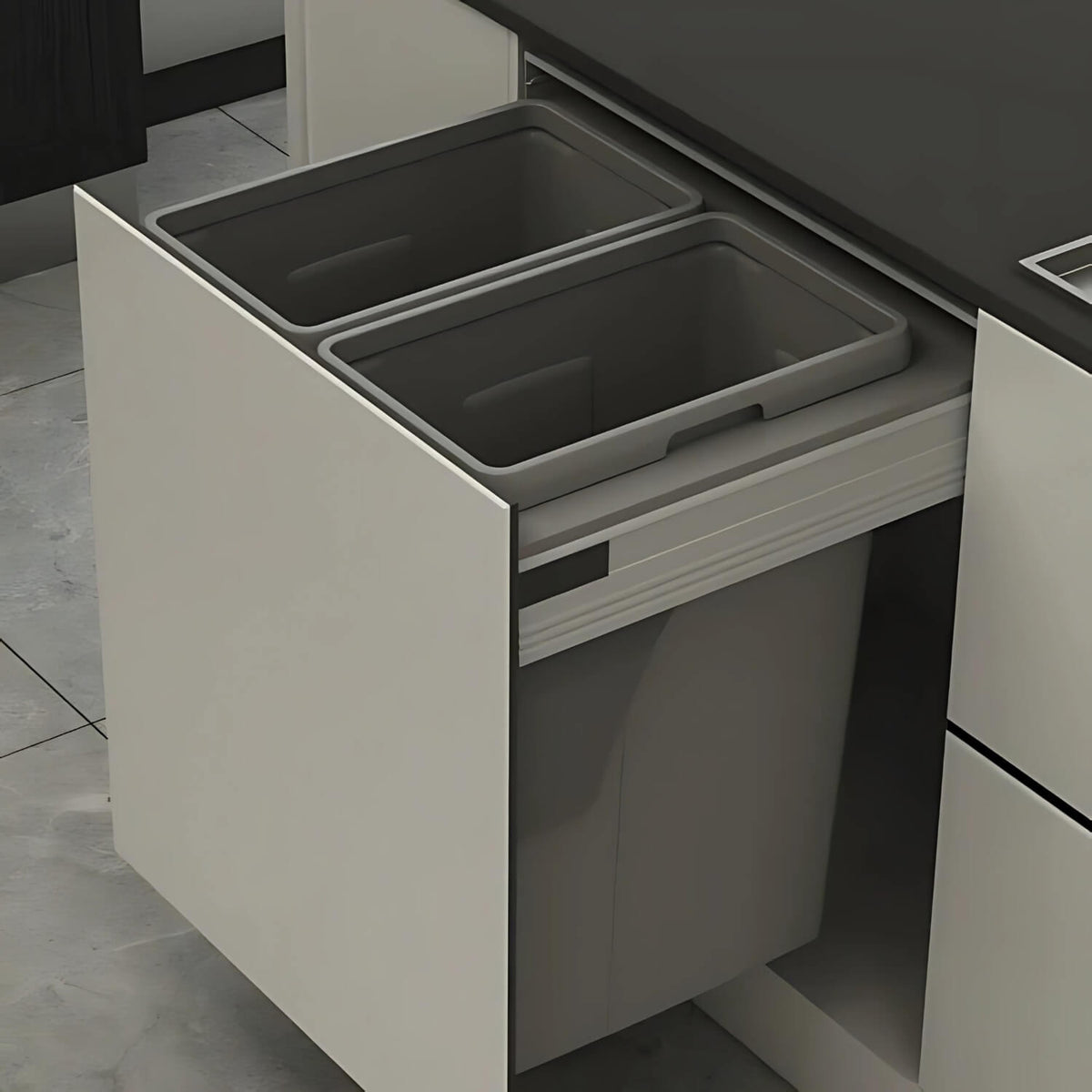

Keep general waste and recycling neatly concealed with this 70L dual pull-out kitchen bin system designed for a 600mm external-width cabinet. The system includes two removable 35L bins and a pull-out support frame, with your choice of a complete set including 500mm soft-close runners or a runner-excluded option for compatible existing installations.

Choose Your Runner Option: Select Includes 500mm Soft-Close Runners (Complete Set) for the full installation kit, or Excludes Runners (Bins & Frame Included) if you are supplying a compatible runner system separately.

The dual-bin configuration makes it easy to separate general household waste and recycling, while the soft-close pull-out system provides smooth, controlled opening and closing for convenient everyday use.

Choose the runner-included complete set or the runner-excluded bins and frame option to suit your installation.

Before ordering, your cabinet must provide a clear internal width of 562–568mm, at least 506mm internal depth and at least 570mm internal height.

• Complete Pull-Out System: Includes two 35L removable bins, pull-out support frame and 500mm soft-close runner system.
• 70L Total Capacity: Two 35L bins provide generous everyday waste and recycling storage.
• Dual-Bin Separation: Use one bin for general household waste and the second for recycling.
• Soft-Close Operation: Smooth and controlled closing provides comfortable, convenient everyday use.
• Designed for 600mm Cabinets: Suitable for a 600mm external-width cabinet when the required internal clearances are available.
• Removable Bins: Both 35L containers can be lifted out for convenient emptying and cleaning.
• Concealed Storage: Keeps rubbish and recycling neatly hidden inside your cabinetry.
• Space-Saving Design: Integrates your waste storage into the cabinetry to help keep valuable kitchen floor space clear.

• Runner Options: With or without 500mm soft-close runners
• Total Capacity: 70L
• Bin Configuration: 2 × 35L removable bins
• External Cabinet Width: 600mm
• Required Internal Width: 562–568mm
• Required Internal Depth: Minimum 506mm
• Required Internal Height: Minimum 570mm
• Runner System: Optional 500mm soft-close runners – select your preferred variant
• Soft-Close: Yes
• Dual-bin rubbish and recycling separation
• Removable bins for easier emptying and cleaning
• Concealed cabinet-mounted pull-out design
• Pull-out support frame included
• Suitable for kitchen, pantry or utility cabinetry

Capacity

• Total Capacity: 70L
• Individual Bins: 2 × 35L

Suitable Cabinet Size

• External Cabinet Width: 600mm

Required Internal Cabinet Space

• Internal Cabinet Width: 562–568mm
• Minimum Internal Cabinet Depth: 506mm
• Minimum Internal Cabinet Height: 570mm

Pull-Out System

• Runner Length: 500mm
• Operation: Soft-close
• Runner System: Optional – included only with the complete-set variant

Please Measure Before Ordering:
The 600mm measurement refers to the external cabinet width. Your cabinet must also provide a clear internal width of 562–568mm, a minimum internal depth of 506mm and a minimum internal height of 570mm.

Cabinet construction and internal clearances can vary even when the external cabinet width is 600mm. Always measure the actual clear internal space before purchasing.

• 2 × 35L removable waste bins
• 1 × pull-out support frame
• 1 × 500mm soft-close runner system (runner-included variant only)
• 1 × installation guide

Runner Options: The runner-included variant supplies the main components as a complete set. The runner-excluded variant requires a compatible runner system to be supplied separately.

• Remove the bins and wash with warm, mild soapy water.
• Dry the bins thoroughly before returning them to the pull-out frame.
• Wipe the support frame with a soft, damp cloth when required.
• Keep the runner tracks and moving components free from crumbs, dust and debris.
• Avoid abrasive pads, harsh chemicals, bleach and solvent-based cleaners.

This complete dual pull-out kitchen bin system is designed for installation inside a 600mm external-width cabinet.

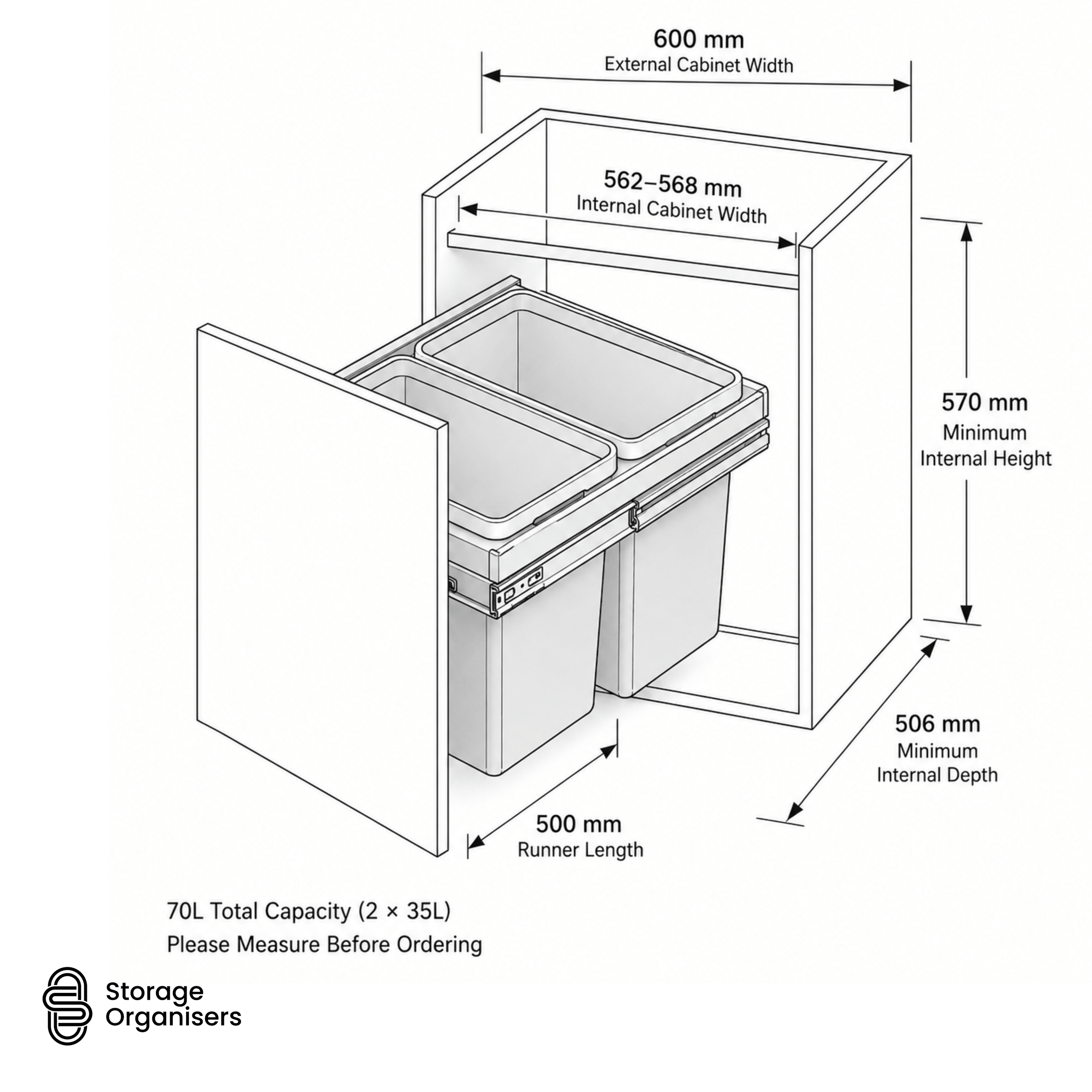

Cabinet Requirements

• External Cabinet Width: 600mm
• Internal Cabinet Width: 562–568mm
• Minimum Internal Depth: 506mm
• Minimum Internal Height: 570mm
• Runner Length: 500mm
• Soft-Close: Yes

Before Installation

1. Measure the clear internal width, depth and height of your cabinet.
2. Confirm the cabinet has a 600mm external width.
3. Confirm the clear internal width is between 562mm and 568mm.
4. Confirm there is at least 506mm of clear internal depth.
5. Confirm there is at least 570mm of clear internal height.
6. Check for hinges, plumbing, pipes, electrical connections, shelves and other obstructions before installation.

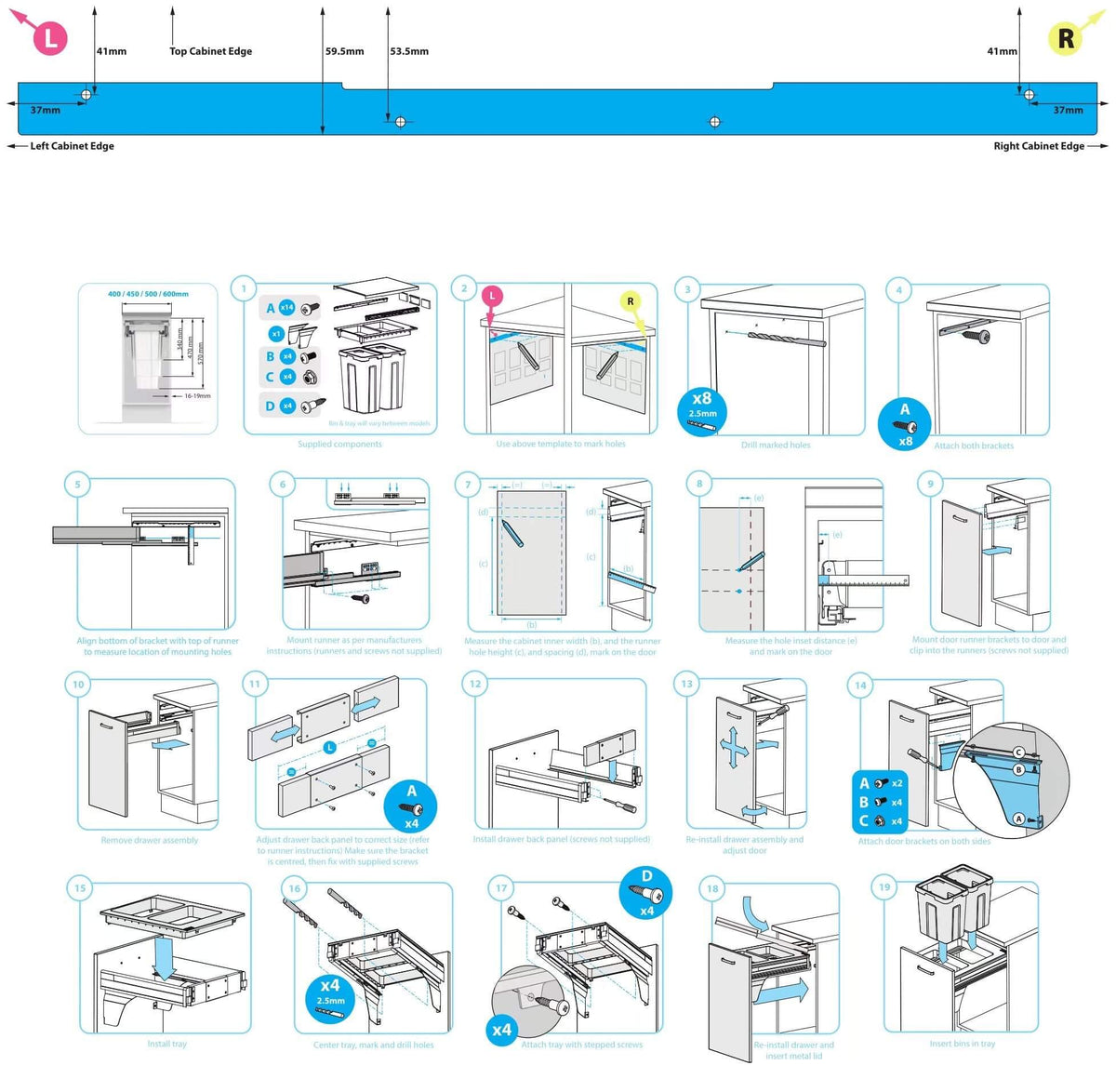

Installation

1. If you selected the runner-included variant, install the supplied 500mm soft-close runner system according to the installation instructions. If you selected the runner-excluded variant, a compatible runner system must be supplied separately before fitting the pull-out frame.
2. Fit the pull-out support frame securely onto the runner system.
3. Fit and align the cabinet front according to the supplied installation instructions.
4. Place both 35L bins securely into the pull-out frame.
5. Fully extend and close the system several times to confirm smooth movement.
6. Check that the soft-close mechanism operates correctly and neither bin interferes with the cabinet during operation.

Important: Do not rely on the 600mm external cabinet measurement alone. Your cabinet must also provide the required 562–568mm internal width, 506mm minimum depth and 570mm minimum height.
