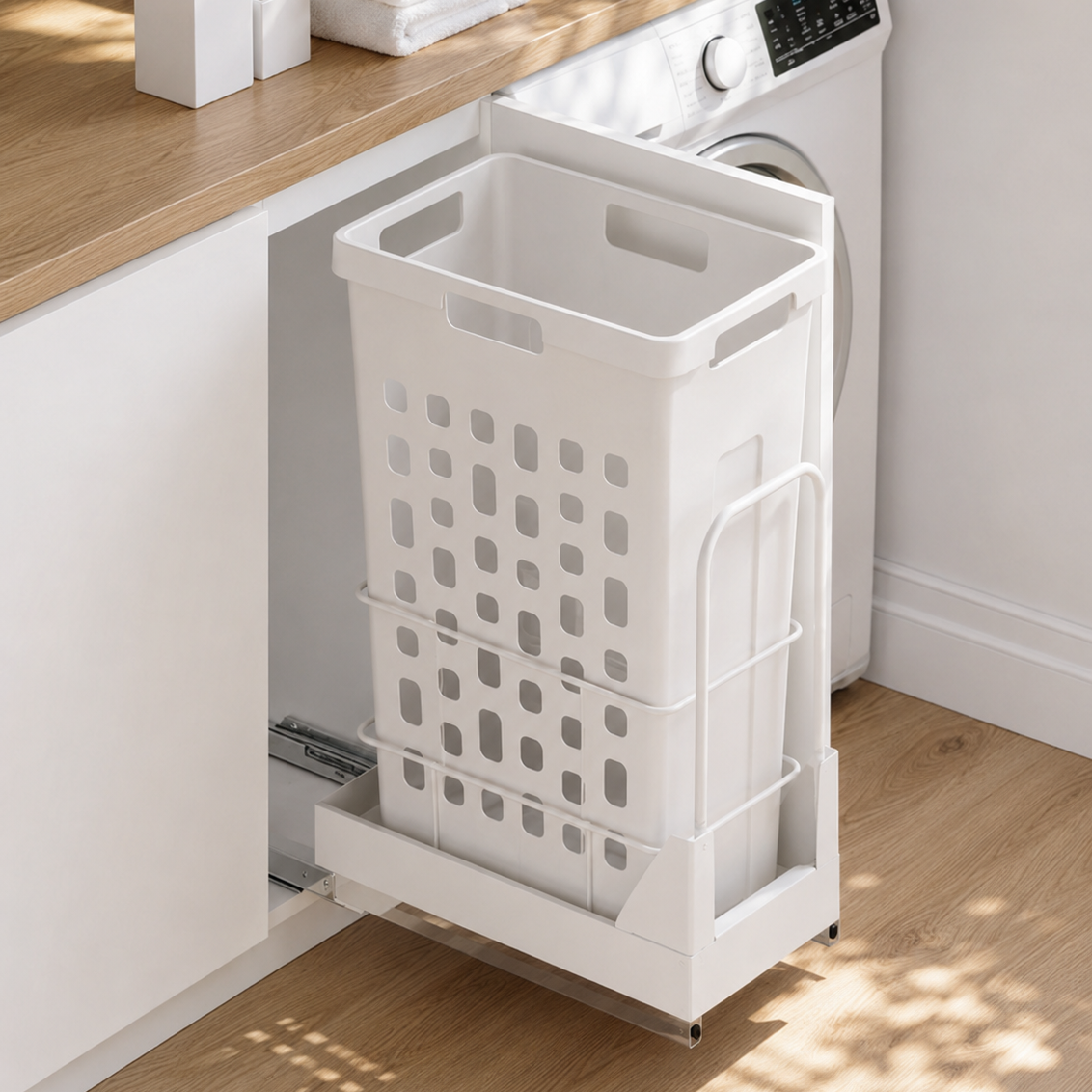

Keep dirty laundry neatly concealed and your space looking organised with this built-in 35L pull-out laundry hamper. Designed for a nominal 300mm-wide cabinet, it provides a practical hidden storage solution for laundries, bathrooms and wardrobes.

The hamper comes as one complete built-in unit with an integrated sliding system, so no separate runners or variant options are required. Simply pull the hamper forward for convenient access, then slide it neatly back inside the cabinetry when finished.

• Concealed Laundry Storage: Keeps worn clothing neatly hidden inside your cabinetry.
• Complete Built-In System: Supplied as one complete unit with an integrated sliding mechanism.
• Convenient Pull-Out Access: Brings the hamper forward, making it easier to load and remove laundry.
• Practical 35L Capacity: Provides useful everyday storage without requiring a wide cabinet.
• Space-Saving Design: Ideal for laundries, bathrooms and wardrobes where floor space is limited.
• Clean, Integrated Finish: Creates a streamlined appearance by keeping the hamper inside your cabinetry.

• Single built-in 35L laundry hamper
• Complete pull-out system with integrated runners
• No separate runners or variant selections required
• Designed for a nominal 300mm-wide cabinet
• Smooth and convenient pull-out access
• Concealed, space-saving storage design
• Suitable for laundries, bathrooms and wardrobes
• Product code: LHW300-35H

• Capacity & Cabinet Requirements

  Usable Hamper Capacity: 35L

  Required Internal Cabinet Dimensions:

  • Minimum Internal Cabinet Width: 60 cm
  • Minimum Internal Cabinet Height: 40 cm
  • Minimum Internal Cabinet Depth: 50 cm

  Please Measure Your Cabinet Before Ordering:
  Please measure the internal width, internal depth and internal height of your cabinet before ordering to ensure there is sufficient space for installation.

  Important: The 35L capacity refers to the usable capacity of the laundry hamper itself. The pull-out mechanism occupies part of the cabinet space, so the full internal cabinet volume is not available for laundry storage.

  Note: These measurements refer to the minimum internal cabinet space required for installation, not the external dimensions of the hamper or pull-out system.

  What's Included

  • 1 × 35L hamper
  • 1 × complete integrated pull-out system

• 1 × 35L laundry hamper
• 1 × integrated pull-out system
• Integrated runners

Note: This product is supplied as a complete integrated pull-out system. No separate runner selection is required.

• Wipe the hamper and exposed frame with a soft, damp cloth.
• Use a mild household detergent when additional cleaning is required.
• Dry all components thoroughly before returning them to the cabinet.
• Keep the runner tracks clear of lint, dust and other debris.
• Avoid abrasive pads, harsh chemicals, bleach and solvent-based cleaners.

Before You Begin

• Measure your cabinet: Confirm that the cabinet is suitable for this 300mm nominal cabinet pull-out hamper. Measure the internal width, height and depth of the cabinet before installation. Check for hinges, plumbing, electrical connections, shelves or other obstructions that could interfere with the hamper or pull-out mechanism.
• Prepare the cabinet: Empty the cabinet and clean the installation area. Ensure the cabinet is stable and that the installation area is clear.
• Check the supplied components: 1 × 35L laundry hamper, 1 × integrated pull-out system with integrated runners.

Step-by-Step Installation

1. Step 1: Position the Pull-Out System: Place the complete integrated pull-out system inside the cabinet in the intended installation position. Ensure the system is correctly aligned with the cabinet opening.
2. Step 2: Secure the Pull-Out System: Secure the integrated pull-out system to the cabinet according to the supplied installation instructions. Use the mounting template and fixing method provided with the product. Do not drill or use alternative fixing points unless specified in the supplied installation instructions.
3. Step 3: Check the Integrated Runners: Operate the pull-out mechanism to confirm that the integrated runners move correctly and that the frame has sufficient clearance from the cabinet sides, base and door.
4. Step 4: Install the Hamper: Place the 35L laundry hamper into the integrated pull-out frame. Confirm that the hamper is seated correctly and can be removed when required.
5. Step 5: Test the Completed Installation: Pull the hamper fully forward and then push it back into the cabinet several times. Check that:
   • The pull-out system moves smoothly.
   • The hamper remains securely positioned.
   • The cabinet door can open and close without interference.
   • The hamper and frame do not contact surrounding cabinet components.
   • There is sufficient clearance for normal operation.

How the Pull-Out System Fits

The product is supplied as one complete pull-out unit with integrated runners. The integrated sliding mechanism is fitted as part of the pull-out system, so customers do not need to select or purchase separate runners.

The hamper sits within the pull-out frame and moves forward with the integrated sliding mechanism for access. When pushed back, the hamper sits inside the cabinet.

Storage Capacity

Usable hamper capacity: 35L

The 35L capacity refers to the actual laundry storage capacity of the hamper basket. The entire internal volume of the cabinet should not be considered usable storage because space is required for the pull-out mechanism and normal movement.

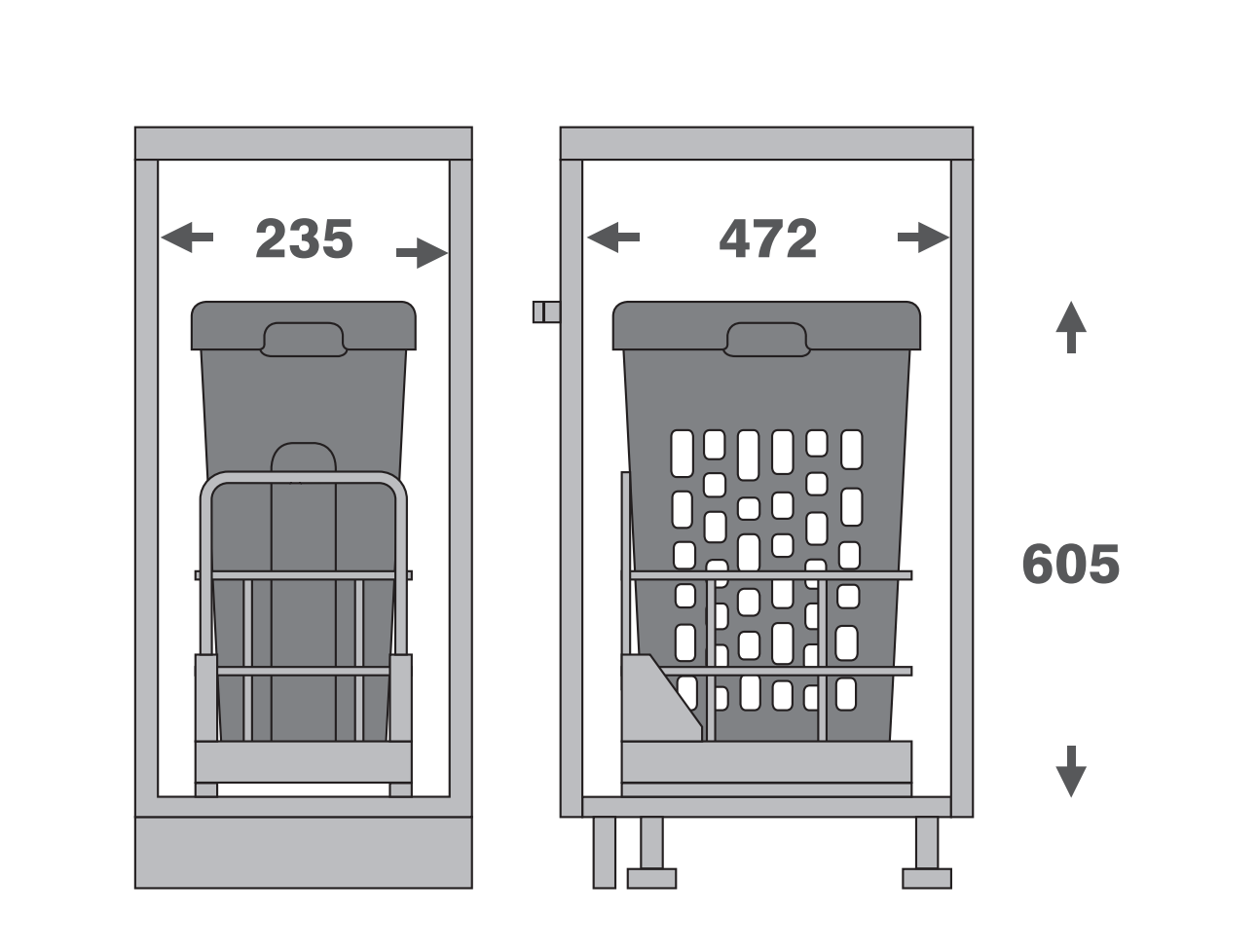

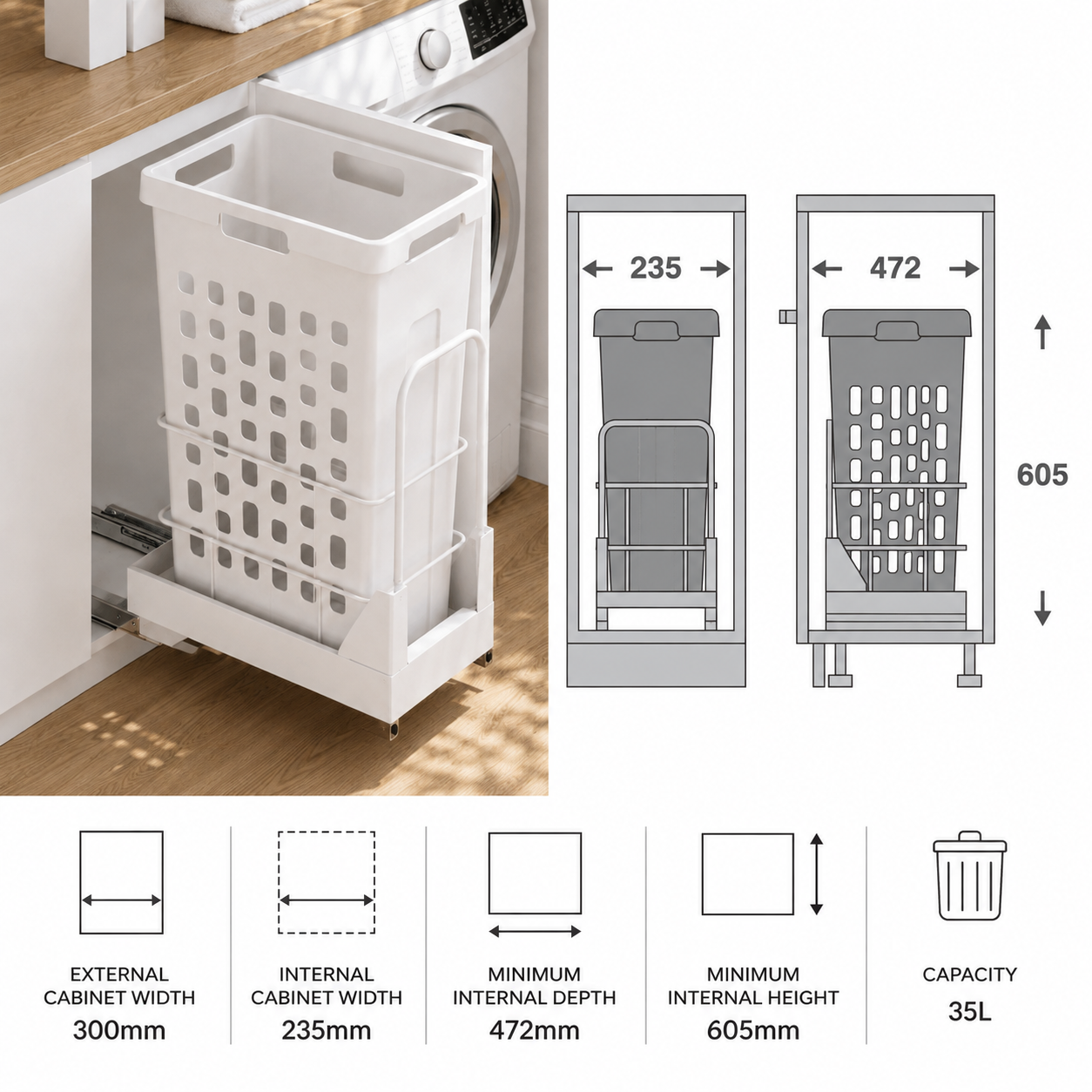

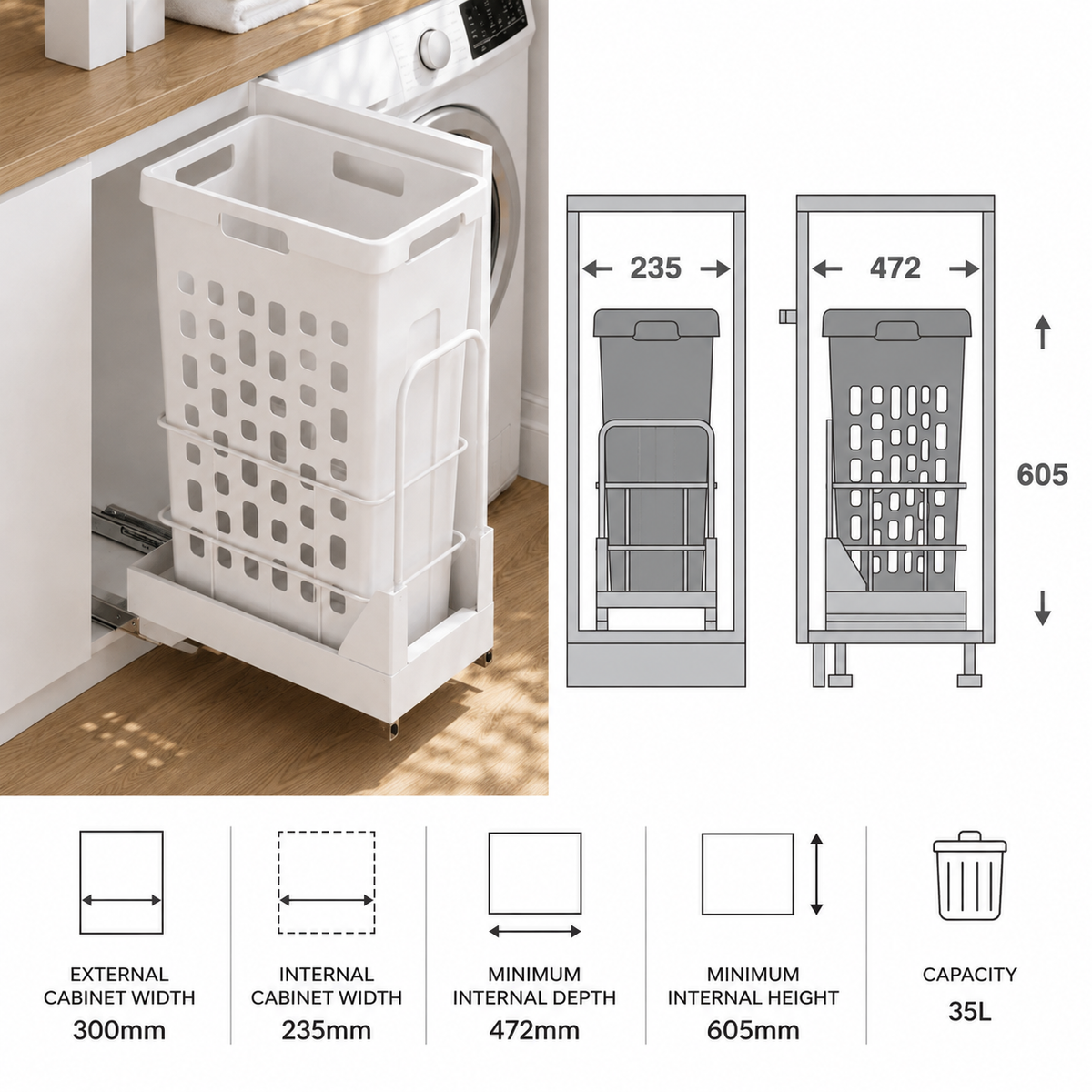

Cabinet Space Requirements

Designed for: Nominal 300mm-wide cabinet

Important: The current listing contains conflicting cabinet dimensions. The stated 60cm minimum internal width does not align with a product identified as a 300mm cabinet. The exact minimum internal width × height × depth must be confirmed against the supplier specification/current physical product before publishing specific measurements. Do not use the existing 60cm × 40cm × 50cm measurements as installation requirements until they have been verified for this exact product.

Installation Diagram

The installation diagram should show:

Cabinet → Integrated Pull-Out System → 35L Hamper → Pull-Out Operation

It should identify the position of the integrated runners and pull-out frame, but must not show exact screw locations, fixing points, product dimensions or cabinet clearances unless these are confirmed by the supplier or physical product.

Important

Installation requirements can vary depending on the cabinet construction. Follow the supplied installation and mounting instructions for the exact fixing method.

If the confirmed supplier installation instructions specify different cabinet dimensions or mounting requirements, those specifications should replace the current listing information before the product is marked complete.
